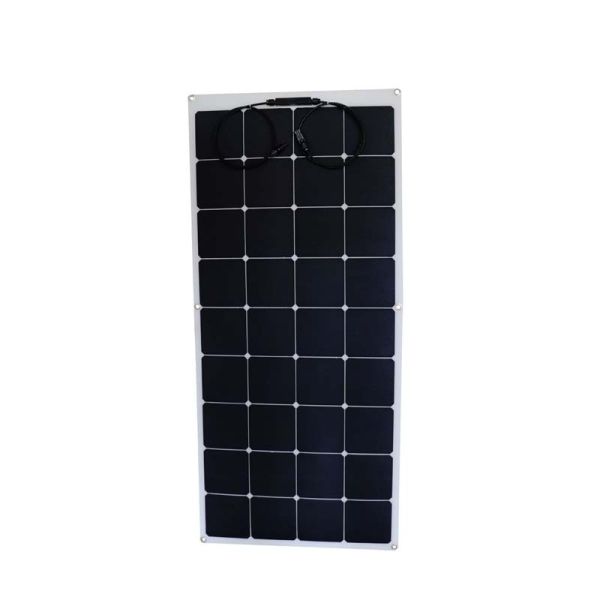

Sunpower ETFE PV Flexible Solar Panels 100w 120w 130w 200w 300w 400w

Name: Sunpower ETFE PV Flexible Solar Panels 100w 120w 130w 200w 300w 400w
Brand: AHONY
Price: 137.50 USD

China Sunpower ETFE PV Flexible Solar Panels 100w 120w 130w 200w 300w 400w wholesale

Brand Name : AHONY

Model Number : eGo S130w

Place of Origin : Guangdong, China

Packaging Details : 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

MOQ : 10 pieces

Price : $137.50/pieces 10-99 pieces

Product Model : eGo S130w

Panel Dimensions : 540x1200x3

Cell size : 4*9

Panel Efficiency : 24.4%

Cell : Sunpower

Material : Japan ETFE/white PET

style : Super UV resistant, thin

OEM Order : Accepted

Application : Camping RV boat marine MotorHome

Contact Now

High Efficiency Sunpower Solar Cells PV Panele ETFE 100w 120w 130w 200w 300w 400w Flexible Solar Panels

Product Description

Model No.	eGo S130w
Product Name	Semi-Flexible Solar Panel
Maximum Power[Wp]	130
Solar Cell	SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs]	4*9
Cell Efficiency	24.40%
Size[mm]	540x1200x3
Max Power Voltage Vmp[V]	22.03
Max Power Current Imp[A]	5.90
Open Circuit Voltage Voc[V]	26.00
Short Circuit Current Isc[A]	6.26
Net.Weight[kg]	3
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	100 V
Maximum Reverse Current[V]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	Japan ETFE/white PET
Maximum bend radius(θ)	30°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets

Sunpower ETFE PV Flexible Solar Panels 100w 120w 130w 200w 300w 400w

QHow to clean the solar panel surface?

AWhen dust and dirt covering at the surface of solar modules can be cleaned with a soft brush,then use a damp cloth to wipe the surface of solar modules,to remove the remaining dust and dirt.Recommend any guano,adhesive should be removed as soon as possible from the surface of solar modules, so as not to affect performance.

QWhat kind of battery can be charged by folding solar kit eMobi F series

A1.sealed lead-acid battery 2.colloidal lead-acid batteries 3.the opening lead-acid batteries 4. (Interface on the controller output via USB) Such as: mobile phones, tablets, navigation systems and so on.
